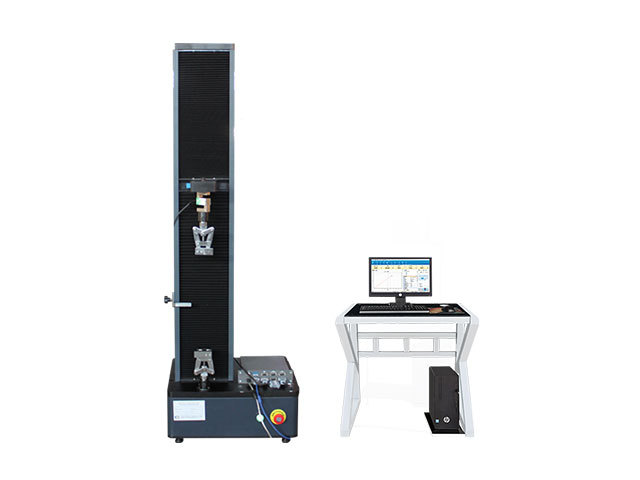

Electronic universal testing machine

  • It's used for small force test

  • It's suitable for tensile,compression, bending,cutting and other testings for non-metal materials.

SHARE:

  • Application:

    • It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.

    • It is widely used in the corresponding industries, research and development, test institutes and training centers etc.


    Standard:


    ASTM, ISO, DIN, GB and other international standards.


    Main Technical Parameters:


    ModelWDW-1/2/3/5
    Max. Load1/2/3/5kN
    StructureSingle Column Double Spaces
    Control MethodComputer Control
    Load Range2%~100% FS
    Displacement Resolution0.01mm
    Test Speed0.05~500mm/min
    Tensile Space600mm (Can be customized)
    Compression Space600mm (Can be customized)
    Power SupplyAC220V±10%, 50Hz (Can be customized)
    GripsWedge Type, Plate Type And Other Grips As Customers’ Demand
    Dimension425*400*1315mm
    Weight200.00 kg


  •

    20191029151144322.jpg@!w1200



    • The Main Interface



    20191029114149540.jpg@!w1200



    • There are many standards can be choosen



    20191025121423750.jpg@!w1200



    • The curve of testing


    20191029114403963.jpg@!w1200



    • The Test Report



    20191029114214150.jpg@!w1200

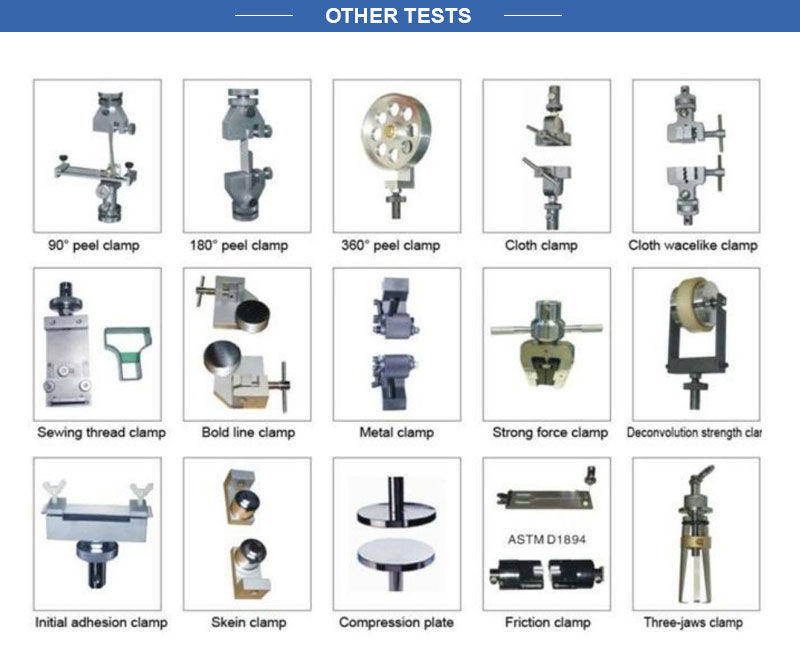

  • 20191030145451425.jpg@!w1200
