Automatic compression testing machine

  • It can be used in the compression and bending strength testing of cement mortar.

  • Control Method of testing rate: Electro-hydraulic closed-loop control.

SHARE:

  • Main Function and Usage

    • The model YAW-300D can be used in the compression strength testing of cement mortar

    • The model YAW-300E can be used in the compression and bending strength of cement mortar.

    • Control Method of Testing Rate: Electro-hydraulic closed-loop control.


    Main Specifications and Technical Parameter


    ModelYAW-300DYAW-300E
    Test Compression Force300 kN300 kN(compression) /10 kN(bending)
    Measure Scale2%-100%FS2%-100%FS
    Accuracy ClassClass 1Class 1
    Loading Speed2.4kN/S±200N/S2.4kN/S±200N/S(compression)/ 50N/S±5N/S(bending)
    Accuracy of Loading Speed ±5%±5%
    Pressure Plate Space(mm)260260
    Top and Bottom Pressure Plate Dimension (mm)Φ155Φ155(compression)/80×150(bending)
    Efficient Stroke of Lead Screw(mm)100100
    Column Clear Space(mm)300300
    Motor Power(kW)0.750.75
    Load Frame Size（L×W×H）(mm)600×560×1500600×560×1500
    Weight (kg)400400



  •

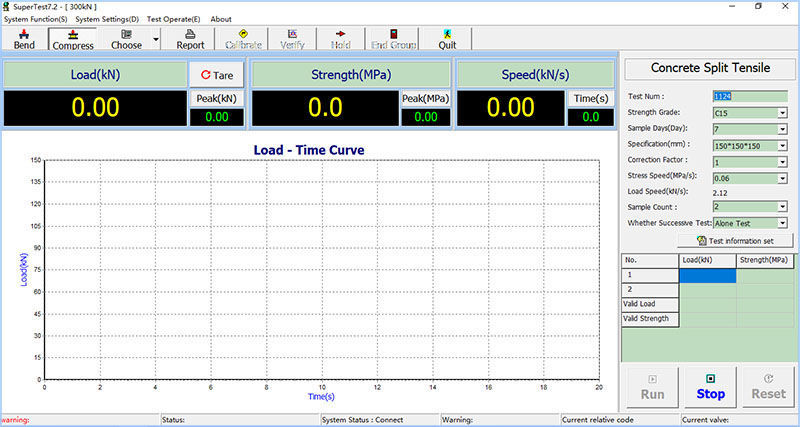

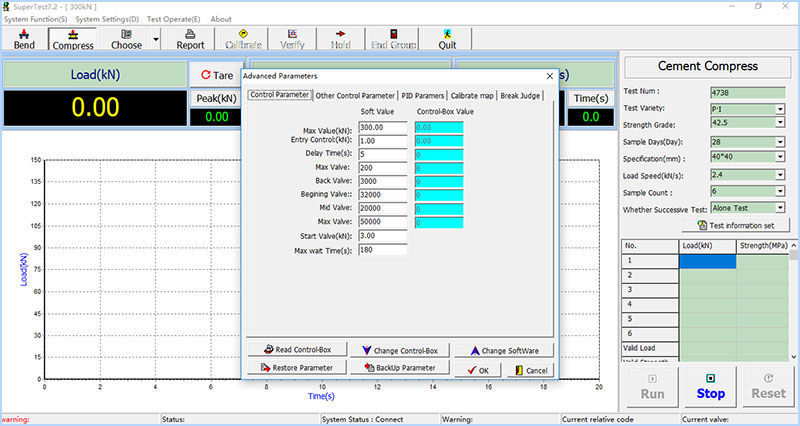

    • The Main interface

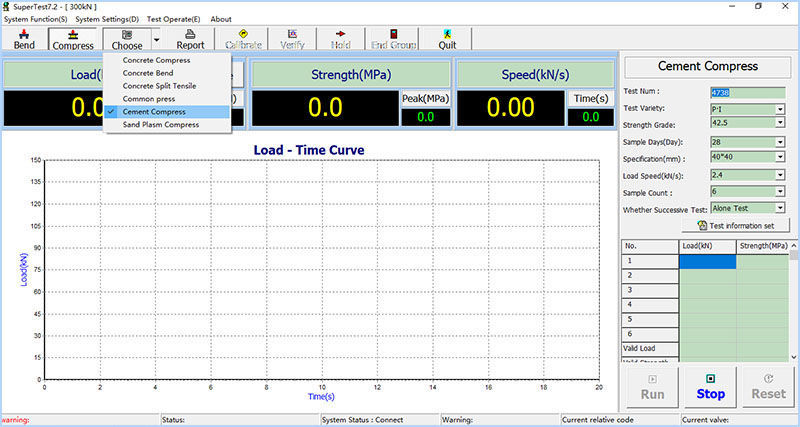

    • The test methods can be choosen




    • The test report
