Computer Display Hydraulic Universal Testing Machine

  • This product is mainly used for the tensile test of metal materials,testing the tensile strength,yield strength,stipulated plastic extension strength, percentage elongation after fracture,elasticity modulus and other mechanical performance index.

  • Control method of rate testing: manual control

SHARE:

  • Mid-range machine model, with high cost performance and stability


    Main Function and Usage


    ◆This product is mainly used for the tensile test of metal materials, testing  the tensile strength,yield strength,  stipulated plastic extension strength, percentage elongation after fracture,elasticity modulus and other mechanical performance index.

    ◆Control method of rate testing: manual control.

    ◆The testing results can be automatically stored, and the testing report,including the testing data and testing curve  would be generated and printed automatically.


    Main Specifications and Technical Parameter


     ModelWEW-2000DWEW-1000DWEW-600DWEW-600BWEW-300B
    Maximum Testing Force2000 kN1000 kN600 kN600 kN300 kN

    Class of

    Testing Machine

    		Class 1
    Efficient Measure Range10%-100%FS

    Relative Accuracy

    of Value Display

    		±1%

    Discrimination of

     Testing Force

    		0.005

    Discrimination

     of Displacement

    		0.001
    Tensile Volume（mm）1300700650650650

    Compression Volume

    （mm）

    		1000550550550600
    Column Space（mm）745550450430430

    Round Specimen

    Clamping Range（mm）

    		Φ20-Φ65Φ6-Φ45Φ6-Φ40Φ6-Φ40Φ6-Φ26

    Flat Specimen

    Clamping Thickness（mm）

    		0-500-300-300-300-30

    Max. Width of

    Flat Specimen Clamping

    （mm）

    		14075757575

    Pressure Plate

    Dimension（mm）

    		Φ300Φ160Φ160Φ160Φ160

    Overall Dimension

    （L*W*H）(mm)

    		1200*800*3300910*830*2300840*700*2200740*590*2150

    Oil Source

    Console Dimension（mm）

    		1150*800*1000
    Total Motor Power（kW）42221.5
    Total Weight（kg）90003200230020001600


  •

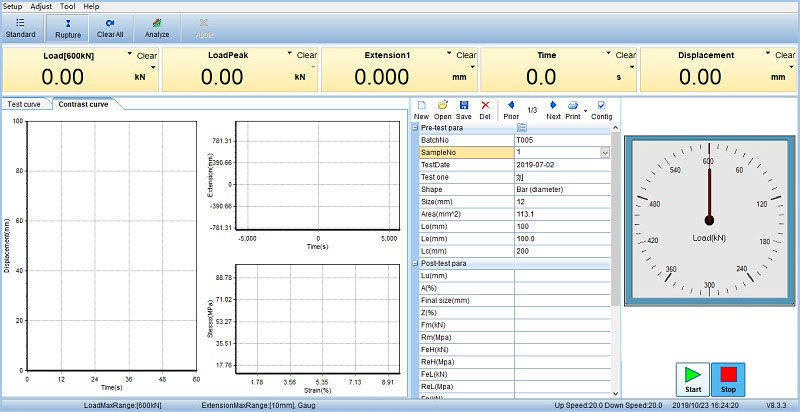

    • The Main Interface

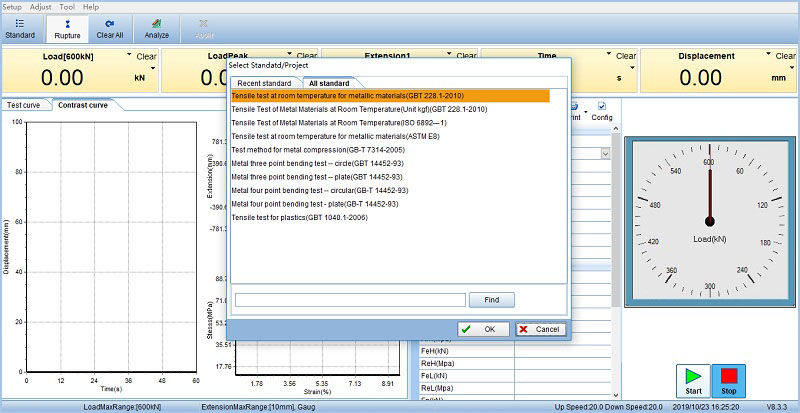

    • There are many standards can be choosen

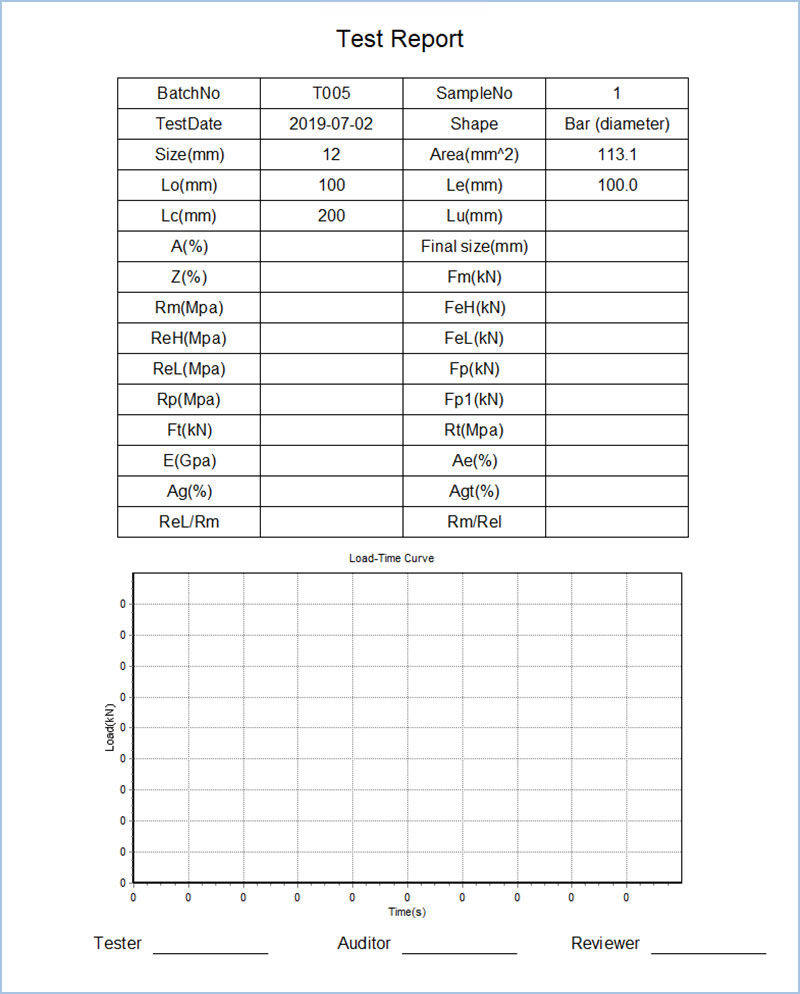

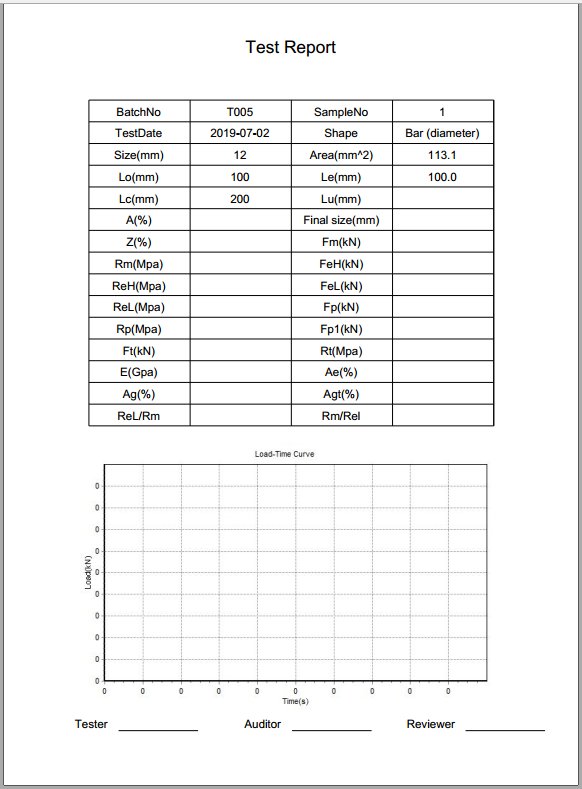

    • The Test Report
