Computer Control Steel Strand Relaxation Testing Machine



It is mainly used in the tensile stress relaxation performance testing for pre-stressed steel wire, steel strand and pre-stressed steel bar.

Main Function and Usage

◆It is mainly used in the tensile stress relaxation performance testing for pre-stressed steel wire, steel strand and pre-stressed steel bar.

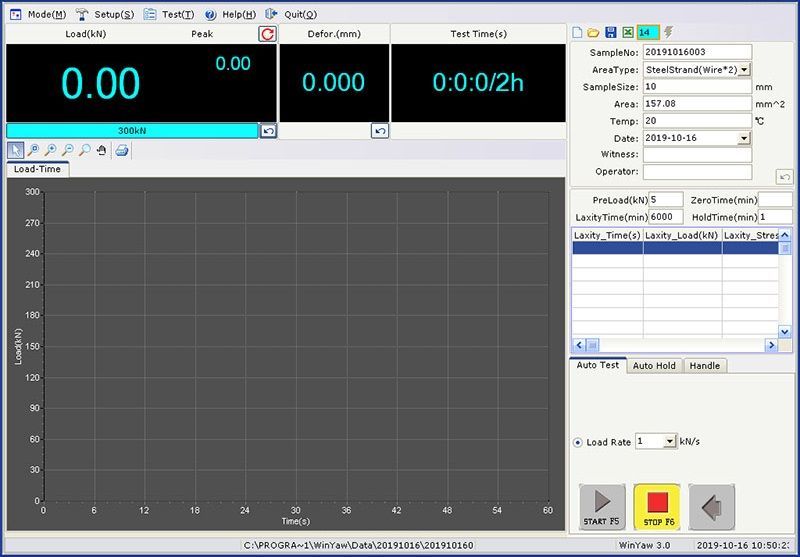

◆It can show the relationship diagram of residual testing power /relaxation rate with time, and relationship diagram of temperature and time.

◆The stress relaxation properties of the specimen in 1000 hours can be calculated by this machine.

◆It can gain the stress relaxation properties of specimen automatically and print a complete testing report.

Main Specifications and Technical Parameter

Model	SXW-300	SXW-500
Max. Testing Force	300kN	500kN
Efficient Measure Range of Testing Force	6～300kN/	10～500kN
Relative Accuracy of Testing Force Value Display	±1%
Discrimination of Testing Force	5N
Relative Accuracy of Displacement Value Display	±1%
Loading Speed	100～5000N/S,random setting
Lead Screw Volume(mm)	100
Testing Space(mm)	2100
Source Power	1.5kW AC200V±10%	3kW 380 V
Overall Dimension(mm)	2000×600×1100	2400×600×1100
Weight(kg)	1250	1500




